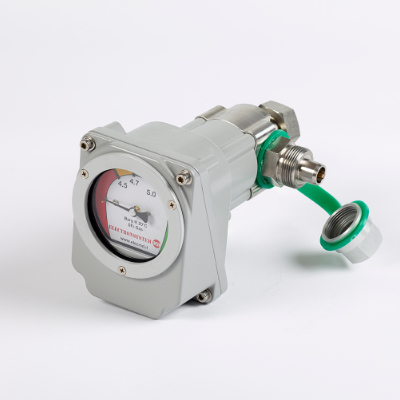

Gas Density Controller with integrated DN8 test valve
- Innovation and Functionality: This Gas Density Controller (GDC) features a built-in stainless steel DN8 test valve directly integrated into the body. This design enables accurate on-site calibration testing during normal plant operation, while maintaining the system’s nominal pressure.
- F-GAS Compliance (Sustainability): The device is fully compliant with the European F-GAS Regulation (EU 2024/573). The valve operates in a self-acting manner: no gas is released into the atmosphere during testing procedures.
Unbeatable advantages compared to traditional 3-way valves:
- Safety: The risk of micro-leaks is drastically reduced, as the integration eliminates the majority of sealing gaskets required by conventional systems.
- Efficiency and Cost-Effectiveness: A compact solution that saves space and reduces overall costs.
- Zero Human Error: Eliminates the need for manual checks of the valve position or locking procedures; the automatic activation prevents any possibility of operator error or improper handling.
Flexibility and Customization (Brand Strengths):
- The DN8 test valve can be positioned/rotated in 4 different directions to suit the customer’s space requirements.
- Pressure connections are fully customizable according to customer specifications.
- Valve body available in AISI303 Stainless Steel (recommended), Brass, or Anodized Aluminum (with color coding to quickly identify the different types of gases handled).
